Assembly of TD75 General Belt Conveyor

Time:2016-04-19　Form:Jiangsu Wuyun　Hit:3727

/

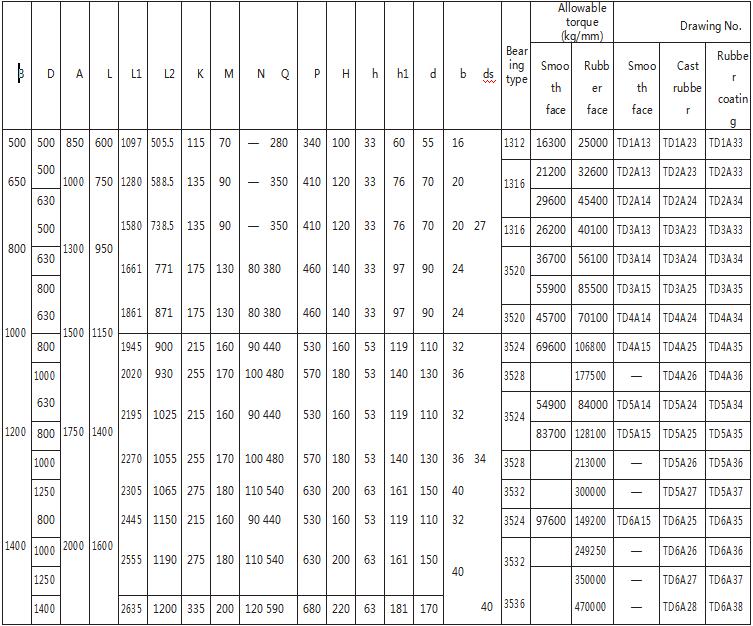

I. Driving drum
/
/

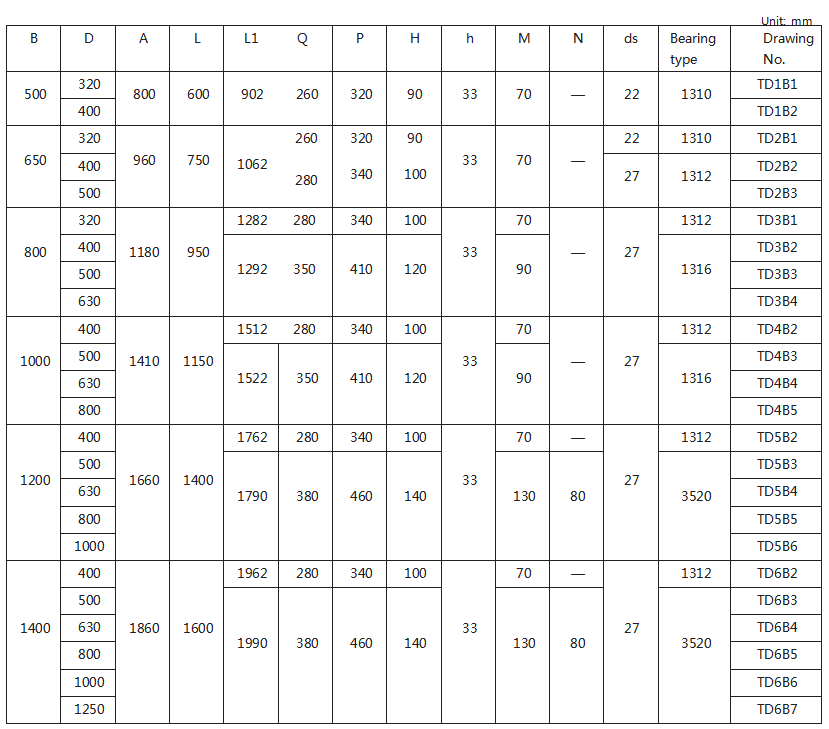

II. Bend drum

/
/

III. Idler

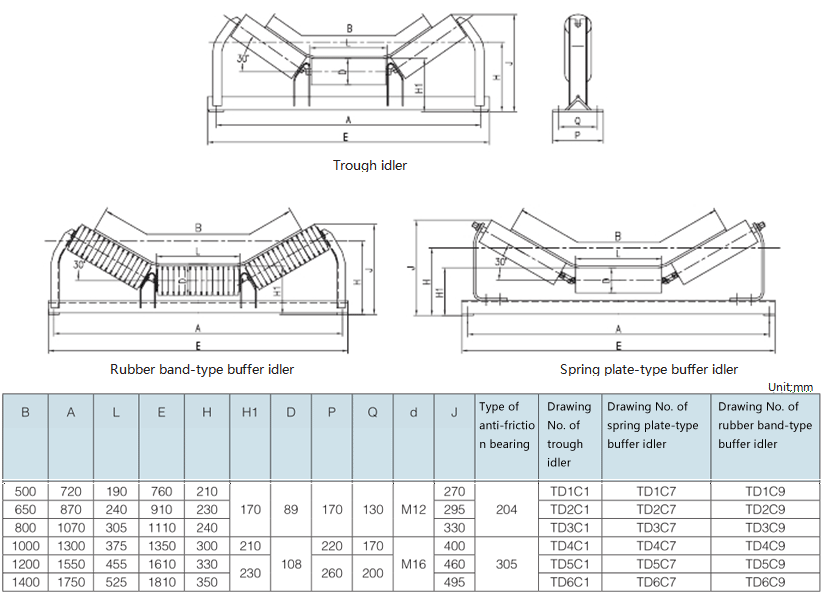

1. Trough idler and buffer idler

/

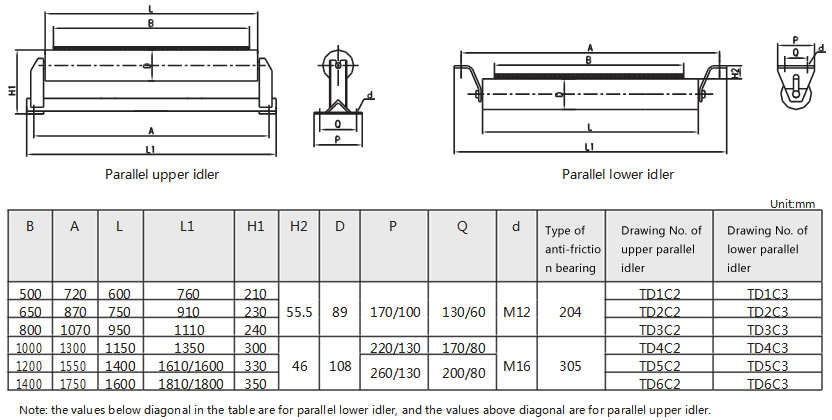

2. Parallel idler

/

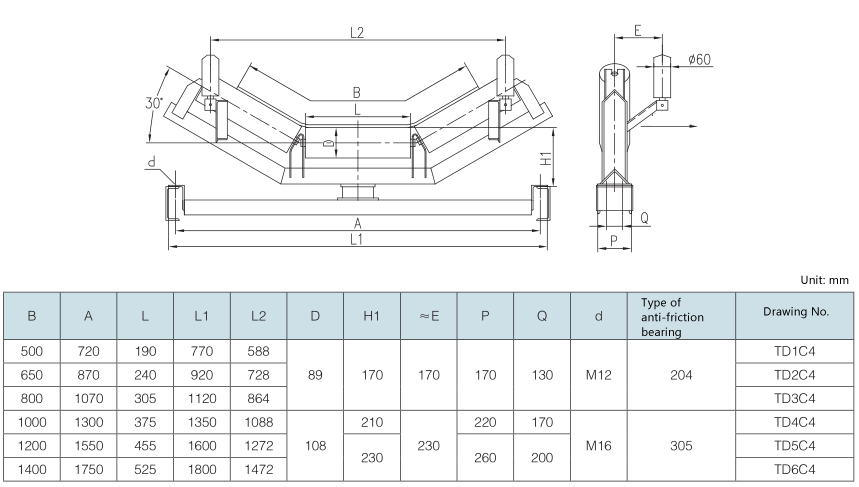

3. Trough self-aligning idler

/

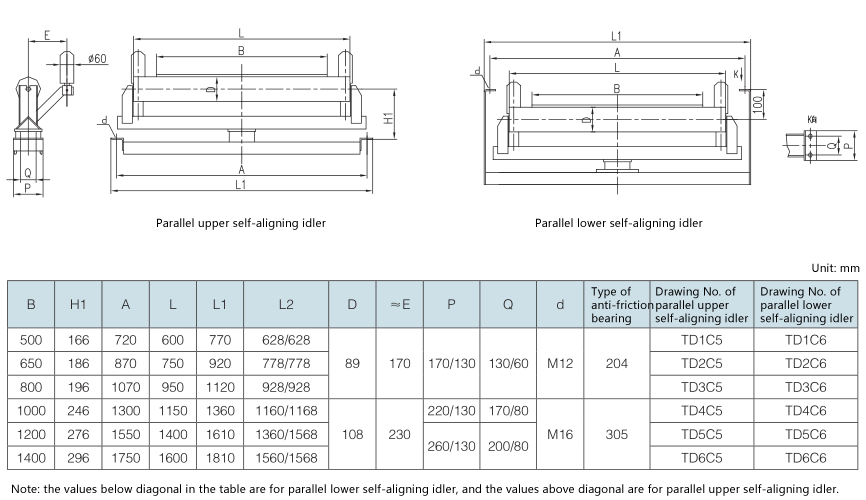

4. Parallel self-aligning idler

/

IV. Roller of idler

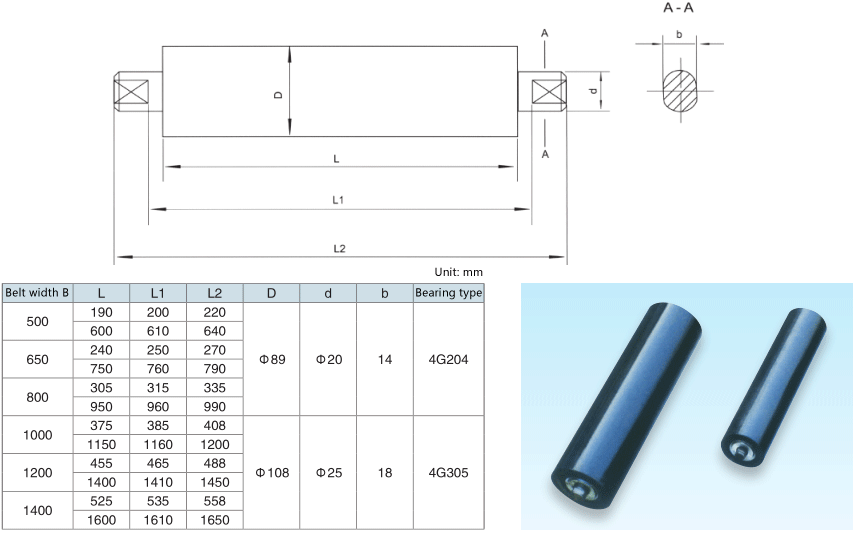

1. TD75 general type roller
/

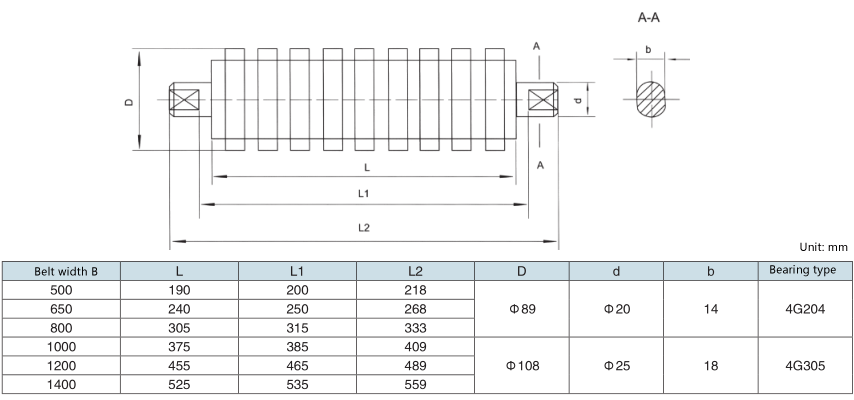

2. TD75 buffer idler

/
